Assembly Procedure



Ocean
P.O. Box 42484
Houston, TX 77242
Tel 281-531 5220
sales@oceanfloat.com

A - Machined pipeline section,   B - End section,   C - Inner collar,   D - End section outer collar,  E - Outer collar, F - Shear ring.
Components shown in green of API 5L X65 or project requirement and in red of 120 ksi steel specifications.

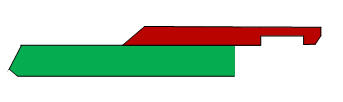

The interface between the preassembled Sections B and D is clad and rolled to a pipe section.

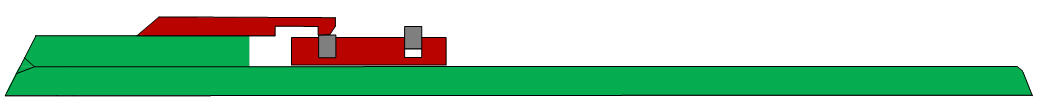

                                                                Part E pressed into position by compressing expandable shear ring

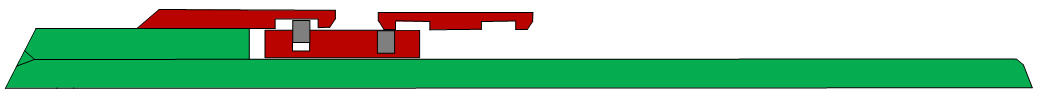

                                                      Part C pressed into position by compressing expandable shear ring

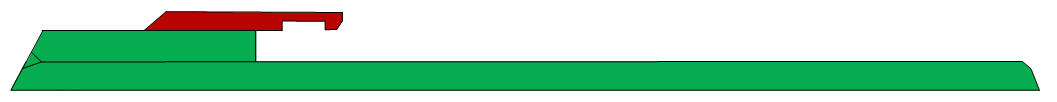

                                                      Part B - D assembly treaded over part A and secured by seal welding .

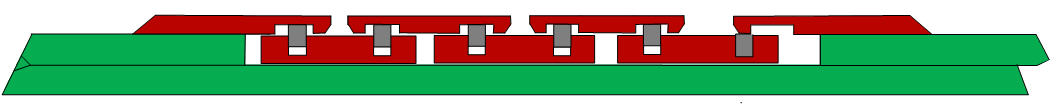

                                                       Second part B - D assembly pressed into position by compressing expandable shear ring and secured by welding.
